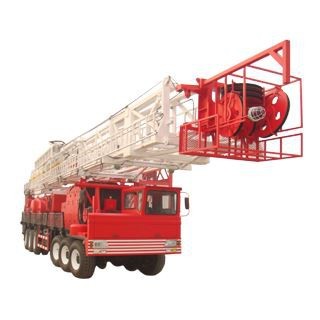

Mobile Drilling RIG Max.Static Hook Load,kN(Lbs) 2250(500,000)
Descriptions of Mobile Drilling RIG Max.Static Hook Load,kN(Lbs) 2250(500,000):
The drilling rig is designed and manufactured in accordance with standards such as API Spec Q1, 4F, 7K, 8C and RP500 etc.
The power system, transmission system, control system, traveling system, and diesel engine, gearbox, drawworks, mast and hydraulic winch are all mounted on the main carrier, which saves space and makes it fast to move the rig.
The main carrier vehicle adopts self-propelled chassis. The chassis and the drilling equipments are driven by mounted diesel engine. It has reasonable chassis load distribution, excellent off-road ability and mobility.
Double-drum drawworks. The main brake of the drawworks is either band type or hydraulic disc type. The auxiliary brake is pneumatic water-cooled disc type or hydromatic type.
The mast, which is front-open and two-section type telescoping structure, can be erected or lowered and telescoped hydraulically.
The drill floor is folded type or parallelogram structure, which is convenient to be lifted and carried.
Developed and reliable chain transmission for rotary table and drawworks make it easy to maintain. The rotary table transmission gearbox can realize forward and reverse gears to adapt various drilling operations.
Specificarions:
| Model |
ZJ100/90CZ |
ZJ15/1350CZ |
ZJ20/1580CZ |
ZJ30/1800CZ |
ZJ40/2250CZ |
Nominal Drilling Depth(4.1/2" DP),
m(ft) |
1000(3,000) |
1500(4,500) |
2000(6,000) |
3000(10,000) |
4000(13,000) |
| Max.Static Hook Load,kN(Lbs) |
900(200,000) |
1350(300,000) |
1580(350,000) |
1800(400,000) |
2250(500,000) |
| Engine |
CAT C9 |
CAT C15 |
CAT C18 |
2×CAT C15 |
2×CAT C18 |
| Transmission |
Allison 4700OFS |
Allison S5610HR |
Allison S6610HR |
2×Allison S5610HR |
2×Allison S6610HR |
| Carrier Drive Type |
8×6 |
10×8 |
12×8 |
14×8 |
14×10 |
| Line Strung |
4×3 |
5×4 |
5×4 |
6×5 |
6×5 |
| Power Rating.HP(kW) |
350(261) |
540(403) |
630(470) |
2×540(2×403) |
2×630(2×470) |
| Height of Mast.m(ft) |
29(95),31(102) |
33(108) |
35(115) |
36(118),38(124) |
38(124) |
| Drilling Line,mm(in) |
26(1) |
26(1) |
29(1 1/8) |
29(1 1/8) |
32(1 1/4) |
| Height of Substructure,m(ft) |
4(13.1) |
4.5(14.8) |
4.5(14.8) |
6(19.7) |
6(19.7) |
